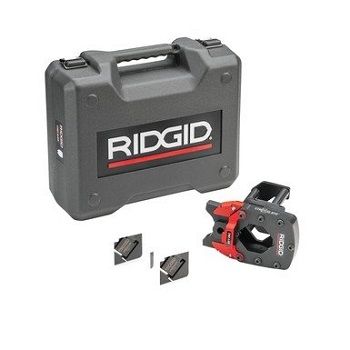

STRUTSLAYR Strut Shear Head KIT, HEAD+CASE + 41 mm x 41 mm DIE​

The RIDGID© STRUTSLAYR™ delivers quality, burr-free strut channel cuts on the jobsite in 5 seconds or less. Supplied with RIDGID 32kN press tool*, the STRUTSLAYR strut cutter offers a clean, consistent cut with a simple pull of a trigger: no grinding or sawing sparks!

Features:

• • Fab Shop Quality
  • Burr-free* cuts eliminate the need for extra filing
  • Increased Efficiency
  • Clean, consistent cuts in 5 seconds or less
  • Safe Operation
  • No grinding or sawing sparks
  • Portable
  • Easy to move around the job site and mounts to RIDGID TRISTANDs
  • Built-in Measuring Guide
  • Allows accuracy on the job site
  • *Burr free with dedicated 41mm x 41mm die

Specifications:

Cutting Capability: Up to 12ga 41mm x 41mm  (max 2.5mm wall-thickness). Not for use with stainless steel strut

Weight of Head: 12 lbs (5.4kg) (including dies, not including press tool)

Cut Squareness: +/- 2° (strut must extend past strut support)

Shearing Dies:

41mm x 41mm Dedicated Die
