Ridgid Roll Grooving Equipment

Ridgid 916 Portable Roll Groover 2 Inch to 6 Inch Copper

Ridgid 916 Portable Roll Groover 2 Inch to 6 Inch Copper

916 Roll Groover

Ridgid

Ridgid 916 Portable Roll Groover 2 Inch to 6 Inch Copper

The RIDGID Model 916 Roll Groover is the most durable and efficient lightweight portable unit available. Built with a solid, durable cast-iron housing, it withstands heavy usage, yet is light enough for easy transportation.

Operators Manual

Operators Manual

Recommended PPE

The RIDGID Model 916 Roll Groover is the most durable and efficient lightweight portable unit available. Built with a solid, durable cast-iron housing, it withstands heavy usage, yet is light enough for easy transportation.

Additional Information

Features:

Specifically designed for field service roll grooving applications.

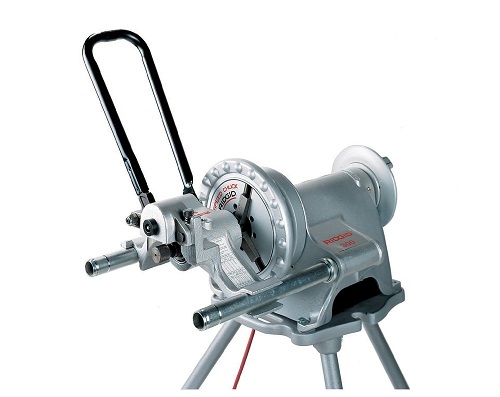

Quick and easy mount to RIDGID Nos. 300 Power Drive, 535 or 1822 Threading Machines.
Cam-type feed actuation – translates into minimum operator effort to form roll grooves.
Depth adjustment screw separate from feed mechanism allows for consistent groove depth.
Lightweight, only 33 lbs., allows for easy transport and storage.
Integral feed handle is part of overall unit. No extra tools required.
Optional Roll Sets for: Copper 2″ – 6″ (Types K, L, M, DWV), 1″ Sch. 10, 40 steel pipe.
Optional 1 1/4″ – 1 1/2″ and 2″ – 6″ AWWA Roll Sets.
Easy serviceability – drive and groove rolls are easy to change.

Specifications:

Capacity	1 1/4″ – 6″ Sch. 10 Steel, Stainless Steel
	1 1/4″ – 3″ Sch. 40 Steel , Stainless Steel
	Optional 2″ – 6″ Copper (Type K, L, M, DWV)
	Optional 1″ Sch. 10, 40 Steel Pipe
	1 1/4″ – 1 1/2″ and 2″ – 6″ AWWA Roll Sets
Weight	33 lbs. (15 kg)

,
