Polypipe Terrain Fuze HDPE

Rems Butt Welding Machine 90 - 315mm

Rems Butt Welding Machine 90 - 315mm

789-rems-butt-welding-machine-90-315-mm

Rems Butt Welding Machine 90 - 315mm

789-rems-butt-welding-machine-90-315-mm

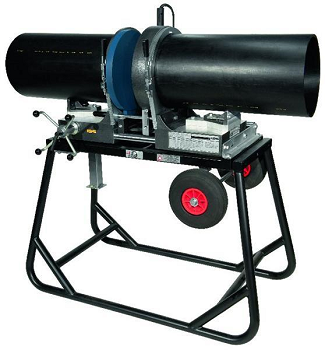

REMS SSM 315RF butt welding machine is a Powerful, easy-to-carry high-performance machine. Ideal for sanitary installations and installations of drain pipes, chimney reconstruction with PVDF pipes.

Operators Manual

Operators Manual

Recommended PPE

REMS SSM 315RF butt welding machine is a Powerful, easy-to-carry high-performance machine. Ideal for sanitary installations and installations of drain pipes, chimney reconstruction with PVDF pipes.

Additional Information

Features:

Compact, robust, job site-proven.
Weight including tubular stand on wheels 154 kg.
Electric facing cutter unit for plane-parallel machining of pipe ends
Smooth sliding, roller-bearing mounting of butt welding unit and electric facing cutter unit
Quick clamping device
Pressing device, clear scale for easy reading of jointing pressure, clamping handle for pressure holding
Standard supply with tubular wheel stand for secure standing and easy transport.
Heating element according to DVS
Plate-shaped, plane-parallel heating element according to DVS.
Electric heater embedded in corrosion-resistant cast aluminium for indirect heat transfer.
High-quality, long-lasting PTFE coating
Adjustable temperature 180 – 290°C, preset for PE pipes.
Electric facing cutter unit with special, high torque universal motor, 500 W, for plane-parallel machining of one or both pipe ends according to DVS.
Fast positioning of facing cutter with proven safety switch.
Specially hardened and specially ground planing blades guarantee easy, vibration-free planing.
Sturdy quick clamping devices made of nickel-plated steel which grip the pipe all round, for pipes of Ø 315 mm.

,
