Navigator 6.0m Scissor Lift

Navigator 6.0m Scissor Lift

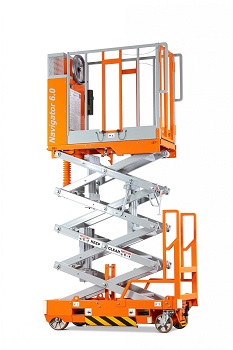

The Navigator 6.0 is the first self-powered push-around scissor lift achieving a working height of 6.0 metres.
Add to Hire
Contact Us
Operators Manual
All Downloads
Operators Manual
All Downloads
Recommended PPE

The Navigator 6.0 is the first self-powered push-around scissor lift achieving a working height of 6.0 metres.

Features:

  • Anti-Climb Vertical Guardrail
  • Tethering Accessories for Tools
  • Anti-Surf Brakes
  • Transport and Deck Lock
  • Outriggers
  • Winch Point
  • Optional Brick Guard

Specifications:

Working Dimensions
Working Height: 6.0 m
Working Platform: 4.0m
Working Footprint: 1.1 (L) x 0.73 (W) m
Platform Dimensions: 0.90 (L) x 0.69 (W) m
Safe Working Load: 150kg
Maximum Side Force: 200 N
Maximum Windspeed (Outdoors): 12.5 m/s
Maximum Gradient: 1 Degree
Maximum Load Per Fixed Wheel: 800 kg
Maximum Load per Swivel Castor: 2000 kg
Machine Weight: 500 kg

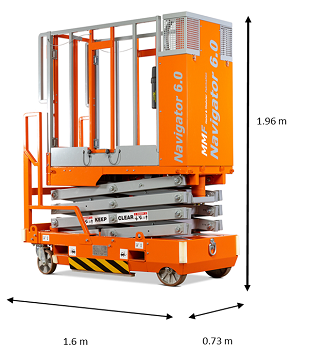

Closed Dimensions
Length: 1.60 m
Width: 0.73 m
Height: 1.98 m
