Mapress Copper Kit 8C 67-108MM


Geberit

Mapress Copper Kit 8C 67-108MM

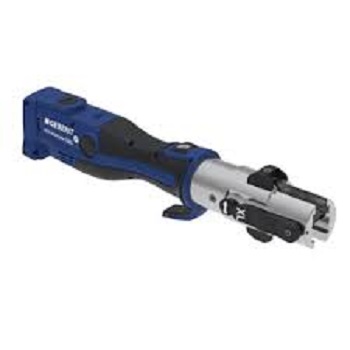

This kit comprises of a Novopress Cordless press tool (ACO203XL) complete with 67-108mm collars and adaptors suitable for Geberit copper press fittings.
Contact Us

This kit comprises of a Novopress Cordless press tool (ACO203XL) complete with 67-108mm collars and adaptors suitable for Geberit copper press fittings.

Features:

  • Suitable for Geberit Mapress Press Fittings
  • Lighter and handier*
  • 12-108 mm with only one pressing tool (all materials)
  • 40 % more pressings per battery charge*
  • Rotatable head
  • Back stroke limitation – fast pressing with compatible jaws by an adaptable piston stroke
  • Less need for maintenance due to new motor technology
  • Thanks to the new, implemented wireless technology on ACO203, device-related data can be requested via the NovoCheck app.
  • Specification:
  • Dimension Metal: up to 108 mm
    Piston force: 32 kN
    Piston stroke: 80 mm (optionally 40 mm)
    Weight: 4.6 kg (inkl. Akku)
    Length: 487 mm
    Width: 79 mm
    Height: 116 mm
    Power consumption: 450 W
    Battery:18 V Li-Ion 3,0 Ah
    Battery capacity: up to 180 Press cycles
    Charging time: approx. 60 min1 x ACO203XL TooL2 x 3.0 Ah batteries
    1 x 240v Charger
    1 set of 15, 18 (Optional), 22, 28, 35mm M profile jaws
    Carry casePlease Note: All our Novopress tools are calibrated using an 8790 presure tester and our jaws are inspected with an 31465 optical laser test rig in accordance with the manufacturers instructions.
