M Press Kit 8 67-108MM

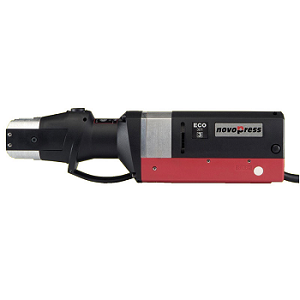

This kit comprises of a Novopress Cordless press tool (ACO203XL) complete with 67-108mm collars and adaptors suitable for M Press copper, carbon and stainless press fittings.

Features:

• Suitable for use on M Press copper, carbon and stainless press fittings
• Lighter and handier*
• 12-108 mm with only one pressing tool (all materials)
• 40 % more pressings per battery charge*
• Rotatable head
• Back stroke limitation – fast pressing with compatible jaws by an adaptable piston stroke
• Less need for maintenance due to new motor technology
• Thanks to the new, implemented wireless technology on ACO203, device-related data can be requested via the NovoCheck app.

Specifications:

Dimension Metal: up to 108 mm
Piston force: 32 kN
Piston stroke: 80 mm (optionally 40 mm)
Weight: 4.6 kg (inkl. Akku)
Length: 487 mm
Width: 79 mm
Height: 116 mm
Power consumption: 450 W
Battery:18 V Li-Ion 3,0 Ah
Battery capacity: up to 180 Press cycles
Charging time: approx. 60 min

• 1 x ACO203XL Tool
• 2 x 3.0 Ah batteries
• 1 x 240v Charger
• 67 – 108mm M profile jaws, collar and adaptor
• Carry cas

Please Note:

All our Novopress tools are calibrated using an 8790 pressure tester and our jaws are inspected with an 31465 optical laser test rig in accordance with the manufacturers instructions.
