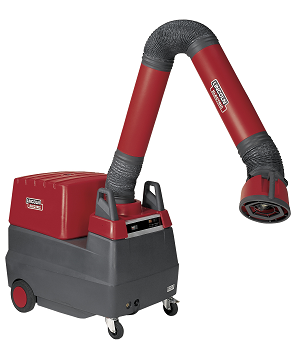

Lincoln Mobliflex Filtration Fume Extractor / 735 CFM Airflow

Mobile Welding Fume Extractor with Filtration The Mobiflex® 200-M is a low vacuum system for welding fume extraction and filtration. Its size and mobility make the Mobiflex® 200-M ideal for smaller manufacturing facilities that require light to medium duty welding fume extraction¹ in variable locations.

Additional Information

Features:

• Generous airflow – 735 CFM with LFA 3.1/4.1 extraction arm.¹
• Front casters and rear wheels – provide mobility.
• Low noise operation – 69 dBA.
• Internal spark arrestor – also functions as a pre-filter for larger-sized particulate.
• Cellulose filter.
• Optimal motion and reach for work area – choose from a variety of extraction arm models or select a hose/hood set.
• One-year warranty (30 day warranty on filter).
• Filter status indicator – visual guide to remaining filter life.
• Large filter capacity – 50 m¹
• Not suitable for use with cutting or arc gouging operations.
• CFM level is dependent upon arm length, fan type and system maintenance.

Specification:

• DIMENSIONS (H X W X D):900 mm x 810 mm x 1210 mm
• NET WEIGHT:90 kg
• POWER CONSUMPTION: 0.75 kW
• CAPACITY: Max. Approx:1250 m³/h at the hood
• ARM:Ø 203 mm with rotatable hood and throttle valve
• HOSE:Ø 203 mm
• FILTER EFFICIENCY: Up to 99%

,
