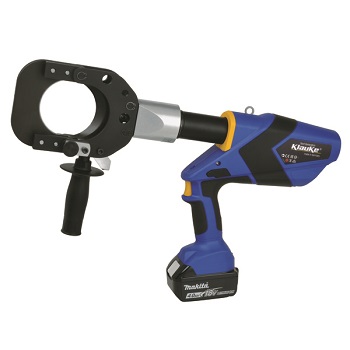

KLAUKE ESG 85 BATTERY CUTTING TOOL 85MM MAX DIAMETER

KLAUKE ESG 85 BATTERY CUTTING TOOL 85MM MAX DIAMETER

KLAUKE ESG 85 BATTERY CUTTING TOOL 85MM MAX DIAMETER

The Klauke ESG 85 Battery Cutting Tool is suitable for cutting copper and aluminium cables with lightweight steel armouring (depending on cable type) to a maximum diameter of 85mm.

Operators Manual

Operators Manual

Recommended PPE

The Klauke ESG 85 Battery Cutting Tool is suitable for cutting copper and aluminium cables with lightweight steel armouring (depending on cable type) to a maximum diameter of 85mm.

Features:

All data can be easily read via Bluetooth
Larger cutting area, optimum force transmission due to closed head shape
Simple and safe: one-button operating concept for controlling all tool functions
LED for work area illumination
2-stage hydraulic system with fast feed and power stroke
Simple and safe: automatic retraction when operation is complete
Manual retract stop (MRS) for efficient operations
Always ready-to-use thanks to battery charge and service display

Specifications:

Makita Battery System

Head type	Guillotine closed
Cutting range	max. 85 mm dia.
Cutting force	60 kN
Cutting time	Depending on material thickness
Number of cuts	Depending on material thickness
Battery voltage	18 V
Battery capacity	4.0 Ah, Li-Ion
Battery charging time	36 mins
Weight including battery	6.8 kg
Ambient temperature	-12 °C to +40 °C
