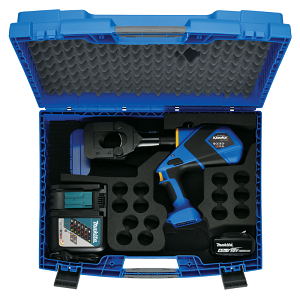

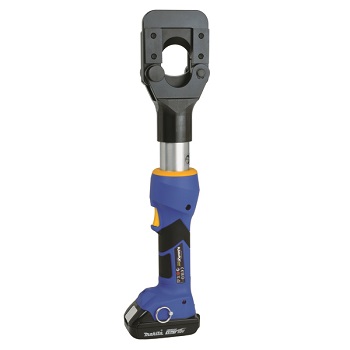

Klauke ESGM 45 Battery Cutting Tool 45mm Max Diameter

Klauke ESGM 45 Battery Cutting Tool 45mm Max Diameter

Klauke ESGM 45 Battery Cutting Tool 45mm Max Diameter

The Klauke ESGM45 Battery Cutting Tool is suitable for cutting copper, aluminium, telecommunication and SWA (steel wired armoured) cable to a maximum diameter of 45mm.

1000 in stock

Operators Manual

Operators Manual

Recommended PPE

The Klauke ESGM45 Battery Cutting Tool is suitable for cutting copper, aluminium, telecommunication and SWA (steel wired armoured) cable to a maximum diameter of 45mm.

All data can be easily read via Bluetooth
Closed head with bolt interlock, rotatable, flip top style
Simple and safe: One-button operating concept for controlling all tool functions
Effortless working due to balanced centre of gravity
LED for work area illumination
2-stage hydraulic system with fast feed and power stroke
Simple and safe: Automatic retraction when operation is complete
Manual retract stop (MRS) for efficient operations
Always ready-to-use thanks to battery charge and service display

Specifications:

Makita Battery System

Head type	Guillotine closed
Cutting range	max. 45 mm dia.
Cutting force	70 kN
Cutting time	8 s to 10 s (depending on material thickness)
Battery voltage	18 V
Battery capacity	1.5 Ah, Li-Ion
Battery charging time	15 mins
Weight including battery	4.6 kg
Ambient temperature	-10 °C to +40 °C
