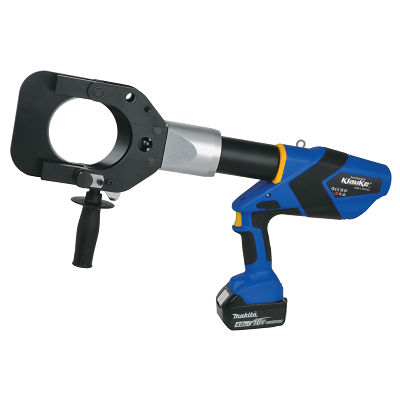

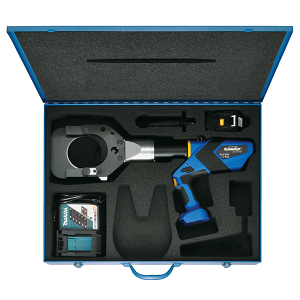

Klauke ESG 105 Battery Cutting Tool 105mm Max Diameter

Klauke ESG 105 Battery Cutting Tool 105mm Max Diameter

Klauke ESG 105 Battery Cutting Tool 105mm Max Diameter

The Klauke ESG 105 Battery Cutting Tool is suitable for cutting copper, aluminium, telecommunication and SWA (steel wired armoured) cable to a maximum diameter of 105mm.

1000 in stock

Operators Manual

Operators Manual

Recommended PPE

The Klauke ESG 105 Battery Cutting Tool is suitable for cutting copper, aluminium, telecommunication and SWA (steel wired armoured) cable to a maximum diameter of 105mm.

All data can be easily read via Bluetooth
Closed head with bolt interlock, rotatable, flip top style
Simple and safe: One-button operating concept for controlling all tool functions
Effortless working due to balanced centre of gravity
LED for work area illumination
2-stage hydraulic system with fast feed and power stroke
Simple and safe: Automatic retraction when operation is complete
Manual retract stop (MRS) for efficient operations
Always ready-to-use thanks to battery charge and service display

Specifications:

Makita Battery System

Head type	Guillotine closed
Cutting range	max. 105 mm dia.
Cutting force	120 kN
Cutting time	Depending on cable type
Number of cuts	Depending on cable type
Battery voltage	18 V
Battery capacity	4.0 Ah, Li-Ion
Battery charging time	36 mins
Weight including battery	10.7 kg
Ambient temperature	-12 °C to +40 °C
