Klauke EK35/4 Battery crimping tool 6-150 mm²

Klauke

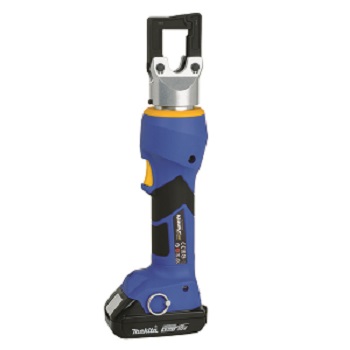

Klauke EK35/4 Battery crimping tool 6-150 mm²

The Klauke EK35/4 battery crimping tool is supplied with HEX die set for standard copper crimping from 6-150 mm².

1000 in stock

Add to Hire
Contact Us
Operators Manual
All Downloads
Operators Manual
All Downloads
Recommended PPE

The Klauke EK35/4 battery crimping tool is supplied with HEX die set for standard copper crimping from 6-150 mm².

  • All data can be easily read via Bluetooth Closed head
  • Flip top style
  • Rotatable Quality assurance via visual and audible signals in case of error
  • Simple and safe: One-button operating concept for controlling all tool functions
  • Effortless working thanks to low weight
  • Comfortable and secure one-hand operation thanks to 2-component plastic housing with soft lining LED for work area illumination
  • Always ready-to-use thanks to battery charge and service display





Makita battery system




Crimping force





35 kN




Stroke





9 mm




Crimping range





6-150 mm²




Crimping cycle





3 s up to 4 s (depending on cross-section)




Number of crimps





approx. 140 at 120 mm² Cu




Battery voltage (V)





18 V




Battery capacity





1.5 Ah, Li-Ion




Charging time





15 min.




Weight incl. battery





2.4 kg




Ambient temperature





-10°C up to +40 °C
