GBH 5 SDS Hammer Drill

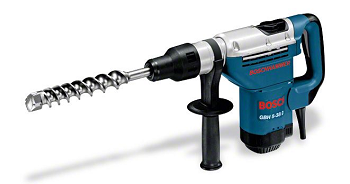

The Bosch GBH 5 SDS Hammer Drill can offer a high drilling rate when drilling into concrete thanks to its optimized hammer mechanism technology.
Add to Hire
Contact Us
Operators Manual
All Downloads
Operators Manual
All Downloads
Recommended PPE

The Bosch GBH 5 SDS Hammer Drill can offer a high drilling rate when drilling into concrete thanks to its optimized hammer mechanism technology.

Additional Information

Features:

  • This sturdy hammer with SDS-max toolholder for drilling up to 38 mm diameter
  • With chisel function for universal application
  • Long lifetime, even in heavy-duty applications, as a result of the sturdy metal housing and compact design
  • Powerful 1050-watt motor
  • High drilling rate when drilling in concrete thanks to optimised hammer mechanism technology
  • Vario-lock with 12 different chisel positions

Specification:

  • Rated power input1.050 W
  • Max. impact energy5,9 J
  • Impact rate at rated speed2.900 bpm
  • Weight5,8 kg
  • Bit holderSDS-max
  • Drilling diameter in concrete with hammer drill bits16 – 38 mm
  • Drilling diameter in concrete with breakthrough drill bits45 – 55 mm
  • Drilling diameter in concrete with core cutters40 – 90 mm

Noise/vibration information – Measured values determined according to EN 60745.

Total vibration values (vector sum of three directions)

Chiselling – Vibration emission value ah 21.5 m/s²

Uncertainty K 1.5 m/s²

Hammer drilling in concrete – Vibration emission value ah 27.0 m/s²

Uncertainty K 1.5 m/s²

,
