Electrofusion Box 110v 40 - 160mm

Electrofusion Box 110v 40 - 160mm

elec

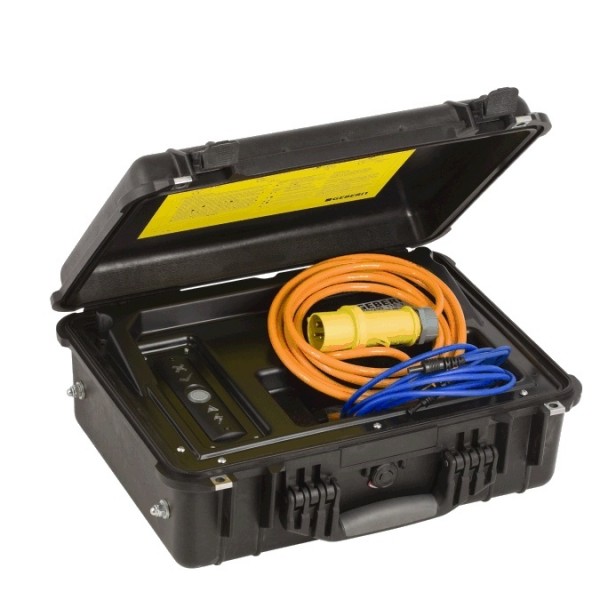

Electrofusion Box 110v 40 - 160mm

This electrofusion box is an extremely convenient device for connecting pipes using an HDPE electro-fusion fitting from 40mm to 160mm. Price shown is hire rate per week.

Operators Manual

Operators Manual

Recommended PPE

This electrofusion box is an extremely convenient device for connecting pipes using an HDPE electro-fusion fitting from 40mm to 160mm. Price shown is hire rate per week.

Recommended PPE

,

Additional Information

Features:

Heat required to make the joint comes from flowinga constant electrical current through the embedded heater wires within the fitting placed around the two pipes.
The pressure required to make the joint is obtained via the shrinking of the fitting.
Shrinking process does not alter the internal bore of the joint.
Once the joint is completed the heater wires remain encased in the HDPE so there is no chance of corrosion.

,

Downloads

HDPE Electrofusion Leads Download
