Klauke EKM 60/22 Battery crimping tool 6-300 mm²


Klauke

Klauke EKM 60/22 Battery crimping tool 6-300 mm²

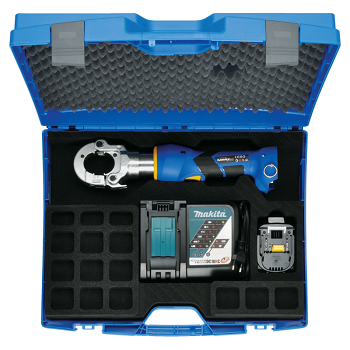

The Klauke EKM 60/22 battery crimping tool is supplied with HEX die set for standard copper crimping from 6-300 mm².

1000 in stock

Contact Us

The Klauke EKM 60/22 battery crimping tool is supplied with HEX die set for standard copper crimping from 6-300 mm².

Features:

  • All data can be easily read via Bluetooth
  • Closed head with bolt interlock, rotatable, flip top style
  • Quality assurance via visual and audible signals in case of error
  • Simple and safe: One-button operating concept for controlling all tool functions
  • Effortless working due to balanced centre of gravity
  • LED for work area illumination
  • Simple and safe: Automatic retraction when operation is complete
  • Automatic retract stop (ARS) for positioning control in case of multiple crimps
  • Always ready-to-use thanks to battery charge and service display

Specifications:

Makita Battery System

Crimping force 60 kN
Stroke 17.5 mm
Crimping range 6 – 300 mm²
Crimping cycle 2 s (for ARS) to 5 s (depending on crimp cross-section)
Number of crimps approx. 150 – 200 at 150 mm² Cu DIN
Battery voltage 18 V
Battery capacity 1.5 Ah, Li-Ion
Battery charging time 15 min.
Weight including battery 3.0 kg
Ambient temperature -10 °C to +40 °C
