EK 135FT KLAUKE BATTERY CRIMPING TOOL 10-630 MM²

EK 135FT KLAUKE BATTERY CRIMPING TOOL 10-630 MM²

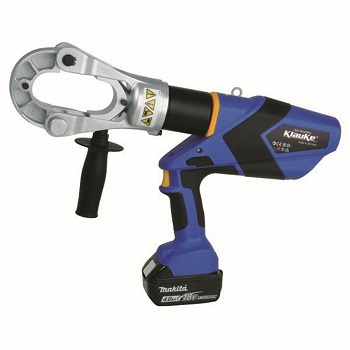

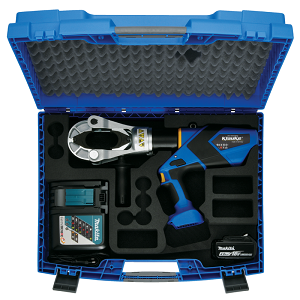

The Klauke EK135 battery crimping tool is supplied with HEX die set for standard copper crimping from 10-630 mm².
£5,319.54

Plus VAT

DELIVERY TO UK MAINLAND ONLY
(Deliveries to Islands and Highlands click here)
Quantity
Contact Us
Operators Manual
All Downloads
Operators Manual

The Klauke EK135 battery crimping tool is supplied with HEX die set for standard copper crimping from 10-630 mm².

Features:

  • All data can be easily read via Bluetooth
  • Closed head, rotatable
  • Quality assurance via visual and audible signals in case of error
  • Simple and safe: One-button operating concept for controlling all tool functions
  • Effortless working due to balanced centre of gravity
  • LED for work area illumination
  • 2-stage hydraulic system with fast feed and power stroke
  • Simple and safe: Automatic retraction when operation is complete
  • Automatic retract stop (ARS) for positioning control in case of multiple crimps
  • Always ready-to-use thanks to battery charge and service display

Specifications:

Makita Battery System

Crimping force 135 kN
Stroke/opening width 50.8 mm
Crimping range 10 – 630 mm²
Crimping cycle approx. 9 s (depending on crimping cross-section)
Number of crimps approx. 85 for 1 x 240 mm² NYY-O rm
Battery voltage 18 V
Battery capacity 4.0 Ah, Li-Ion
Battery charging time 36 min.
Weight including battery 10.2 kg
Ambient temperature -10 °C to +40 °C
