Klauke EK 135 FT Battery crimping tool 10-630 mm²

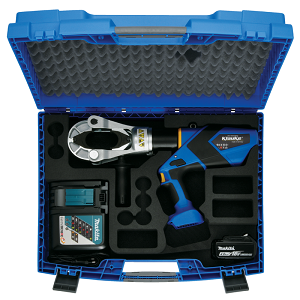

The Klauke EK135 battery crimping tool is supplied with HEX die set for standard copper crimping from 10-630 mm².
Contact Us

The Klauke EK135 battery crimping tool is supplied with HEX die set for standard copper crimping from 10-630 mm².

Features:

  • All data can be easily read via Bluetooth
  • Closed head, rotatable
  • Quality assurance via visual and audible signals in case of error
  • Simple and safe: One-button operating concept for controlling all tool functions
  • Effortless working due to balanced centre of gravity
  • LED for work area illumination
  • 2-stage hydraulic system with fast feed and power stroke
  • Simple and safe: Automatic retraction when operation is complete
  • Automatic retract stop (ARS) for positioning control in case of multiple crimps
  • Always ready-to-use thanks to battery charge and service display

Specifications:

Makita Battery System

Crimping force 135 kN
Stroke/opening width 50.8 mm
Crimping range 10 – 630 mm²
Crimping cycle approx. 9 s (depending on crimping cross-section)
Number of crimps approx. 85 for 1 x 240 mm² NYY-O rm
Battery voltage 18 V
Battery capacity 4.0 Ah, Li-Ion
Battery charging time 36 min.
Weight including battery 10.2 kg
Ambient temperature -10 °C to +40 °C
