Cembre ECW-H3D Hyrdraulic Crimping Head 10-630 mm²

Cembre

Cembre ECW-H3D Hyrdraulic Crimping Head 10-630 mm²

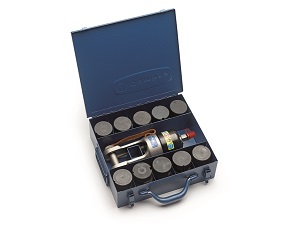

The Cembre ECW-H3D Hydraulic Crimping Head is supplied with HEX die set for standard copper crimping from 10-630 mm².

1000 in stock

Add to Hire
Contact Us
Operators Manual
All Downloads
Operators Manual
All Downloads
Recommended PPE

The Cembre ECW-H3D Hydraulic Crimping Head is supplied with HEX die set for standard copper crimping from 10-630 mm².

  • Hydraulic presshead complete with quick automatic coupler for connection to a hydraulic pump with a working pressure of 700 bar max.
  • Adaptor type AU230-130D is available as an optional extra enabling the head to utilise the semi-circular slotted dies which are common to most 130 kN tools.
  • The ECW-H3D crimping head comes complete with the Cembre PO7000 Hydraulic Pump.

Specifications:

Width

120 mm

Length

290 mm

Weight

5.5 kg

Nominal pressure

700 bar

Force developed

230 kN

Type of action

Crimp
