Angle Clamp

Angle Clamp

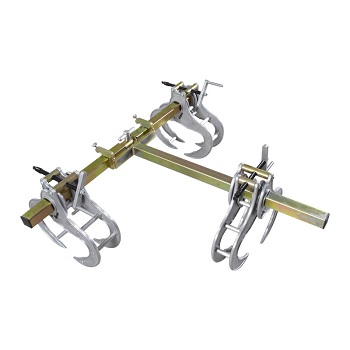

This lightweight aluminium jaws (Code FCA) holds pipe sizes 63-180mm without the need for reducing liners. When coupled together with the angle maker you have the versatility of a positioning clamp to hold pipe in 45° and 90° bends. The quick opening handle and the patented centering system allows you to install the clamp easily over the pipe until the weld process has finished.

Operators Manual

Operators Manual

Recommended PPE

This lightweight aluminium jaws (Code FCA) holds pipe sizes 63-180mm without the need for reducing liners. When coupled together with the angle maker you have the versatility of a positioning clamp to hold pipe in 45° and 90° bends. The quick opening handle and the patented centering system allows you to install the clamp easily over the pipe until the weld process has finished.

Features:

Pipe range 63-180mm Ø
Made from lightweight aluminium and steel
Easy to install and use
No reduction lines required for smaller branch outlets
Minimal excavation required, fits above pipe joint easily
Available in 2 or 3 way configuration
Self centering design requires no reducing shells
