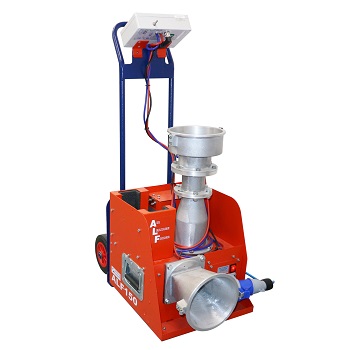

The ALF 150 duct leakage tester is a light-weight and totally self-contained primary device machine. It can generate up to 150l/s of airflow and test up to 2500Pa static pressure.

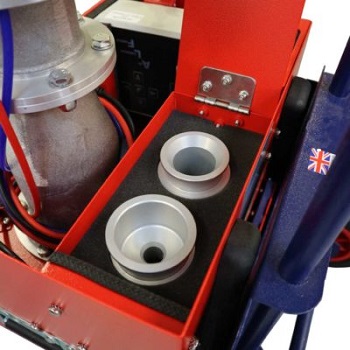

It is capable of developing static pressures from -2500Pa to +2500Pa, and flow rates of 1 to 150l/s. This provides approximately 140l/s of air flow for Class A leakage tests and up to 70l/s for Class C/D leakage tests. The ALF 150 uses conical inlet nozzles, which means the unit is a primary device.

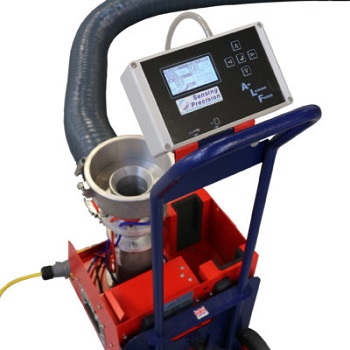

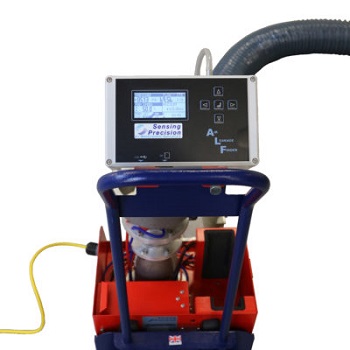

A single all in one instrument means that this duct leakage tester is not only simple to use but also removes the complexity that might be associated with operating a duct work leakage tester and other forms of testing equipment. The ALF 150 is easily transportable.
Specifications:
| Standards | EN 1507 / 12237, DW/143, SMACNA | |
| Volume Flow Measurement | 1 to 150 l/s – over nozzle ranges | |
| Pressure Measurement Range | ±2500 Pa | |
| Typical Duty Points | 70 l/s at 2000 Pa, 140 l/s at 500 Pa | |
| Pressure Measurement Accuracy | ±1% of reading ±1 digit | |
| Leakage Flow Accuracy | ±2.5% of reading ±1 digit | |
| Resolution | 1 Pa | |
| Sensor Damping | 0.5s to 8s | |
| Power | 400W | |
| Voltage | 230Vac 50/60Hz (or 110Vac 50/60Hz available) | |
| Unit Size | 35W x 46D x 80H cm | |
| Unit Weight | 20kg | |
| Carry Case (c/w Accessories) Size | 45W x 45D x 55H cm | |
| Carry Case (c/w Accessories) Weight | 10.5kg | |
| Clip on Trolley Size | 38W x 20D x 94H cm | |
| Clip on Trolley Weight | 6.7kg | |
| Maximum recommended SD Card | 32 GB SDHC Class 1 |
